Sheet Metal Cutting

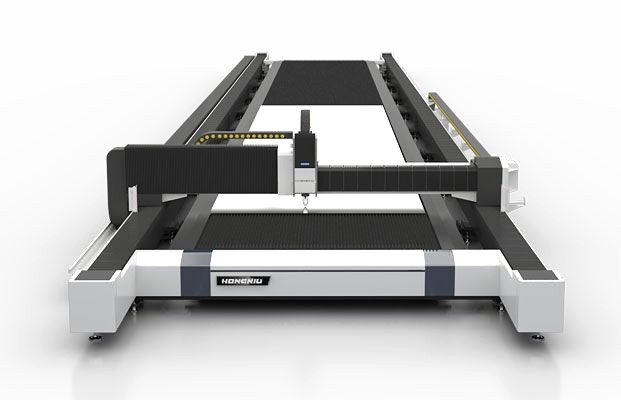

Ultra-Large-Format Cutter
up to 50 kW · tables to 24 × 3.2 m
The LM series is the answer for large-scale cutting, handling sheets as big as 24000×3200 mm. A high-strength modular bed is engineered for 10-year deformation-free precision and can be extended in length, while 12 kW to 40 kW of power makes light work of thick plate.
- Work area up to 24000×3200 mm
- Modular bed — infinite extension up to 24 m

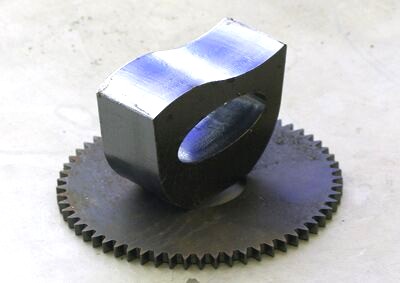

- Suitable for medium and thick plate (50 kW available)
- Protective light-curtain safety on the beam
- CE / FDA certified — 2-year limited warranty
Engineering
Why it earns its floor space

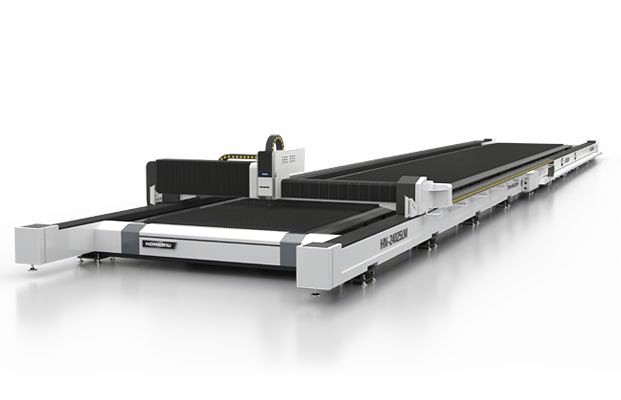

Modular Machine Bed
A high-strength modular bed is engineered for 10-year deformation-free precision, with length extendable up to 24 m.
High-Power Cutting Head
Purpose-built for high-power thick-plate cutting with intelligent real-time data, safety monitoring and a rapid cooling system.
Protective Safety Grating
A protective light curtain on the crossbeam protects workers even if they accidentally enter the cutting area.

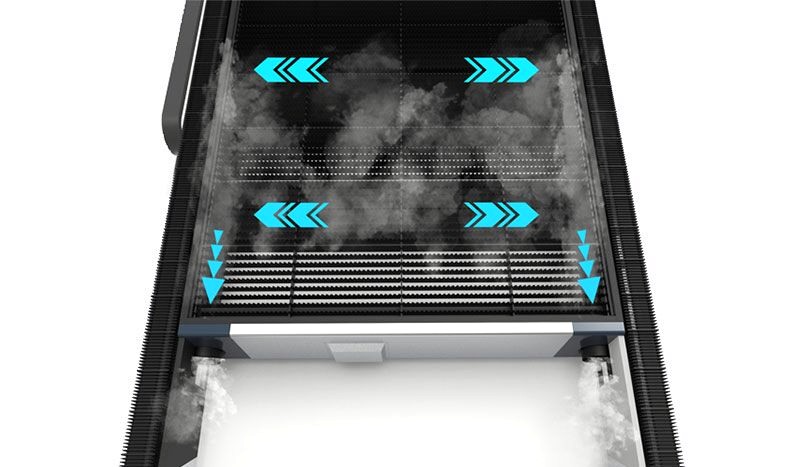

Double-Flue Exhaust
Zoned bed dampers open with the cutting-head position; smoke is blown to one side and drawn into ventilation ducts for maximum capture.

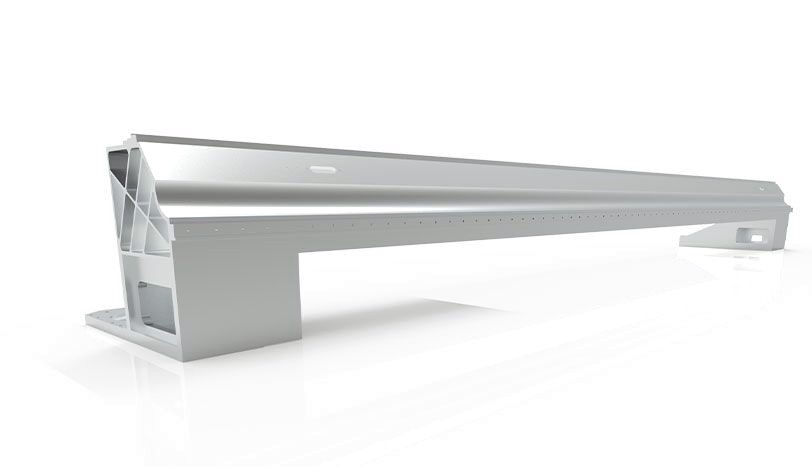

Aerospace-Aluminium Beam
A bionic honeycomb beam with triangular outer wall raises rigidity by 20% while cutting weight by 35%.
Specifications
Technical parameters
| Model | 12025LM | 24032LM |
|---|---|---|
| Working area | 12000×2500 mm | 24000×3200 mm |
| Laser power | 3000 W – 50000 W | |
| Positioning accuracy | 0.03 mm/m | |
| Repeat positioning accuracy | 0.02 mm/m | |
| Bevel cutting | Optional | |
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
