Sheet Metal Cutting

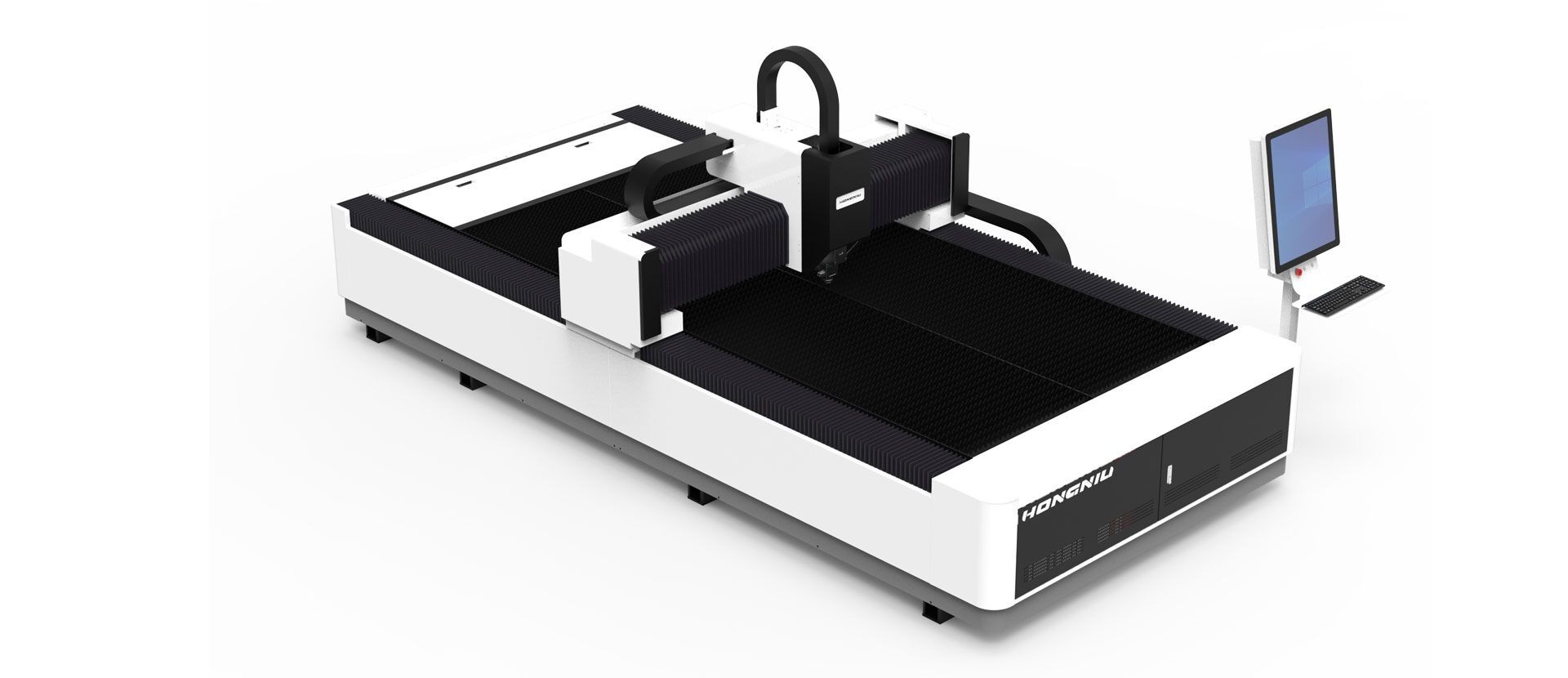

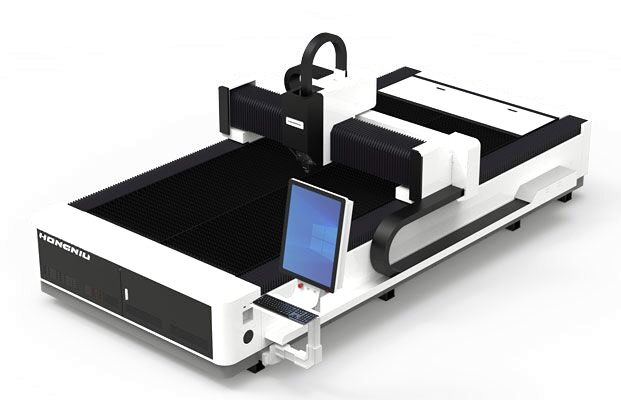

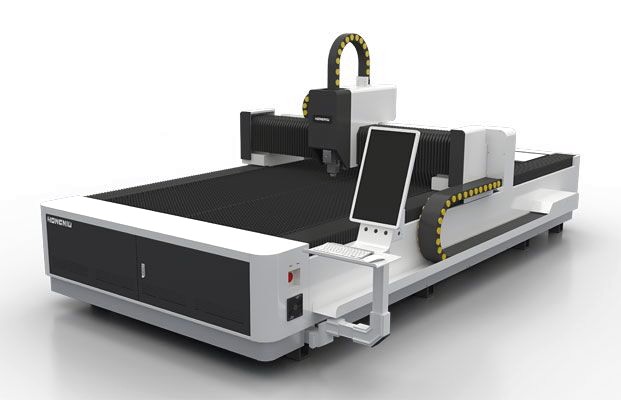

Open-Type Sheet Cutter
1–3 kW · compact · best value for small shops
The 3015L open-type cutter brings power, precision and versatility to small and medium shops. From 1 kW to 3 kW it handles all metal types with an autofocus head that adjusts up to 10× faster than manual focusing, on a compact, cost-effective platform.
- Work area 3000×1500 mm up to 6000×1500 mm
- Power options 1 kW to 3 kW
- Autofocus head cuts plate up to 20 mm thick
- Compact, integrated, space-efficient design
- CE / FDA / ETL certified — 2-year limited warranty
Engineering
Why it earns its floor space
Compact, Space-Efficient
A highly integrated design saves floor space, making it an easy fit for small and medium-sized workshops.
Autofocus Cutting Head
Auto-focus software sets the lens for precision cutting of plate up to 20 mm — about 10× faster than manual adjustment, with water-cooled optics for long head life.
Flange Transmission
Flange drive improves power transmission and minimises friction, raising machine stability, durability and service life.

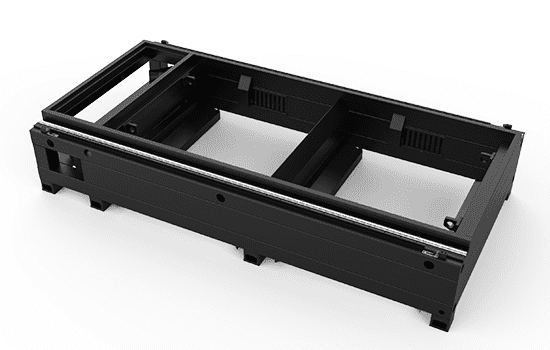

High-Precision Welded Bed
Rectangular-tube welding with internal stiffeners boosts bed strength and rail stability, preventing deformation.

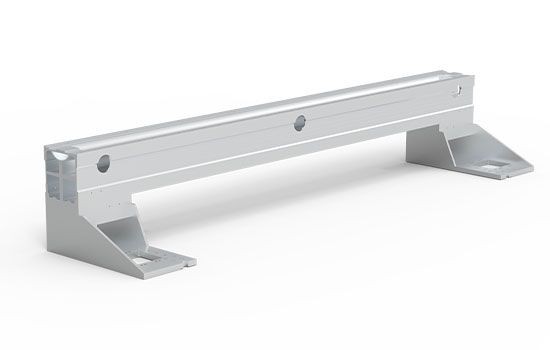

Aviation-Aluminium Beam
A lightweight reinforced aviation-aluminium beam — annealed, aged and finish-machined — ensures strength and stability.
Specifications
Technical parameters
| Parameter | 3015L |
|---|---|
| Working area | 3000×1500 mm |
| Laser power | 1000 W – 3000 W |
| Max. movement velocity | 90 m/min |
| Repeat positioning accuracy | 0.02 mm/m |
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
