Sheet Metal Cutting

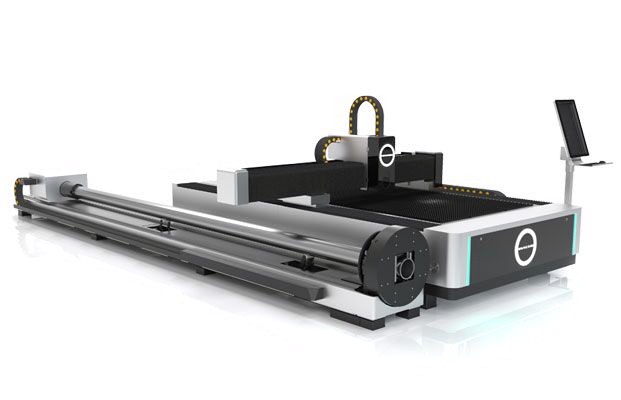

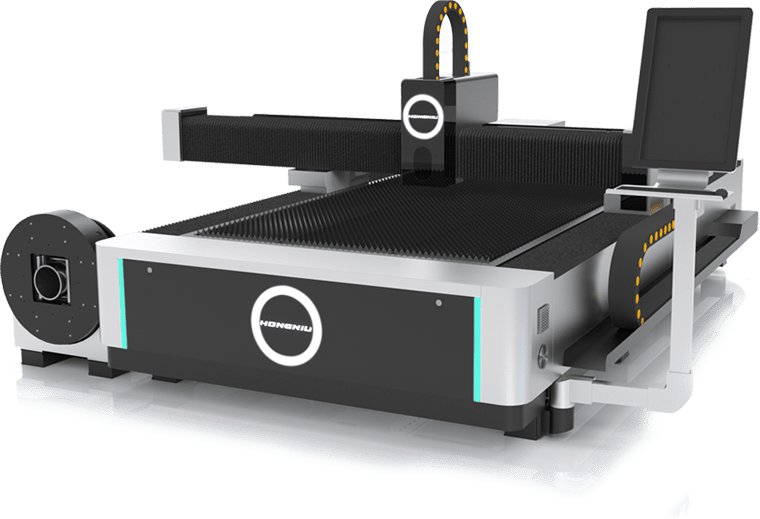

Sheet & Tube Combo Cutter
1–6 kW · plate + pipe on one platform
An integrated sheet-and-tube cutter with 1 kW to 6 kW of fiber power and optional 3 m or 6 m pipe capacity. Double pneumatic chucks handle round and square tube up to Ø350 mm, while the open structure keeps the whole process visible — one machine that does the work of two.
- Cuts both metal sheet and tube
- Work area 3000×1500 mm to 6000×2500 mm
- Pipe diameter range 20–350 mm
- Saves over 50% floor space vs. separate machines
- CE / FDA / ETL certified — 2-year limited warranty
Engineering
Why it earns its floor space
Double Pneumatic Chucks
Wireless control, one-key clamping and constant clamping force secure heavy tubes, with concave supports propping the tube for added stability.
Autofocus Cutting Head
Auto-focus optics cut plate up to 20 mm thick — 10× faster than manual focus — with water-cooled collimator and focus lenses for long head life.
Flange Transmission
Flange drive enhances power transfer and minimises friction for better stability and a longer service life.

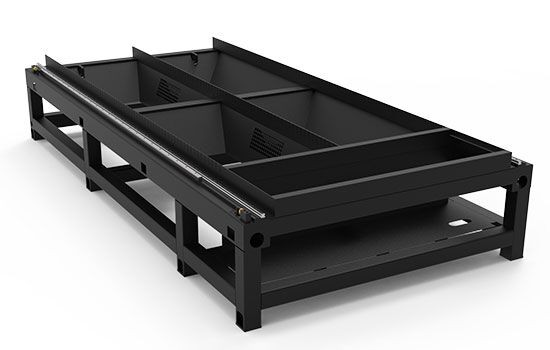

Heavy Welded Bed
An ultra-stable heavy welded steel bed resists deformation and holds accuracy under high-power cutting.

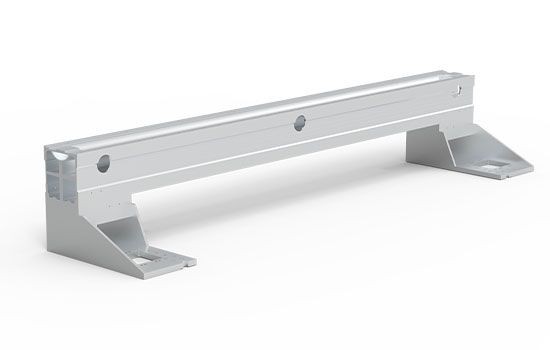

Aviation-Aluminium Beam
A reinforced, stress-relieved aviation-aluminium beam keeps the gantry light and rigid.
Specifications
Technical parameters
| Model | 3015ER | 4020ER | 6025ER |
|---|---|---|---|
| Working area | 3000×1500 | 4000×1500 | 6000×2500 |
| Laser power | 1000 W – 6000 W | ||
| Max. movement velocity | 130 m/min | ||
| Repeat positioning accuracy | 0.02 mm/m | ||
| Pipe processing range | 6000 × Ø10–160 (□10–110) | 6000 × Ø20–220 (□20–155) | 6000 × Ø20–350 (□20–250) |
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
