The machine
Engineered for thick plate, around the clock.
Higher power on request, behind a full protective enclosure, with an auto-exchange shuttle table that swaps in 20 seconds — built for high-throughput cutting of medium and thick plate.
Sheet Metal Cutting

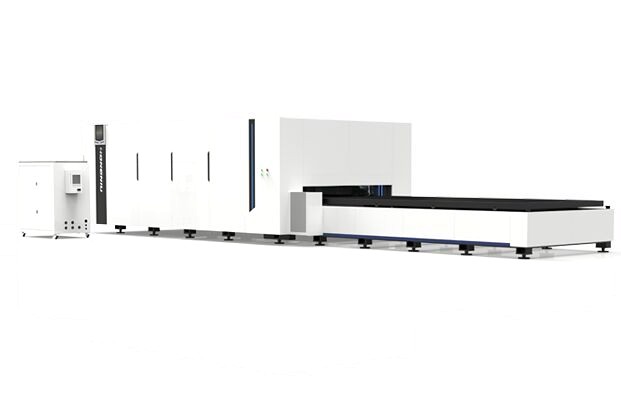

High-Power Fiber Laser Cutter
Higher power on request · fully enclosed · 20-second pallet exchange
Built for high-throughput cutting of medium and thick plate, the High-Power series runs behind a full protective enclosure that shields operators from laser radiation and keeps the shop clean. Auto-swappable pallets complete an exchange in 20 seconds, lifting effective productivity by roughly 30%.
- Working area 3000×1500 mm up to 12000×2500 mm
- Suitable for thick and medium plate — higher power on request
- Fully wrapped, light-tight protective structure
- CE / FDA / ETL — meets European and North American standards
- 2-year limited warranty
Higher power on request
Laser power
up to 12 × 2.5 m
Working area
20 s
Pallet exchange
0.03 mm/m
Positioning accuracy
Closer look
A closer look at the machine, part by part.
High-Power Fiber Laser Cutter
Smart dust removal
Smoke-free, zoned extraction.
The air outlet switches automatically with the position of the cutting head, giving precise, near-smokeless capture across the whole bed.
Machine bed
A welded bed that holds accuracy.
A high-strength welded steel bed resists deformation under high-power loads, dissipates heat efficiently and holds precision over the long term.
Aviation-aluminium beam
Lightweight beam, fast dynamics.
A reinforced aviation-aluminium beam — stress-relieved, aged and finish-machined — keeps the gantry light and rigid at high acceleration.
Engineering
Why it earns its floor space
01
20-Second Exchange Platform
A shuttle pallet completes a full table exchange in 20 seconds, improving effective output by around 30% with safety monitoring and rapid cooling on the back-plate cut.
02
Smart Dust Removal
Sectioned extraction automatically switches the active air outlet to follow the cutting head, giving precise, near-smokeless capture across the whole bed.
03
Safe & Non-Polluting
Safety doors, one-button shutdown, CE-grade laser glass on the viewing window and a built-in smoke filter make this an eco-friendly, fully compliant machine.
04
Heavy Welded Machine Bed
A high-strength welded steel bed resists deformation under high-power loads, dissipates heat efficiently and holds accuracy over the long term.
05
Aviation-Aluminium Beam
A lightweight, reinforced aviation-aluminium beam — stress-relieved, aged and finish-machined — keeps dynamics fast and stable at high acceleration.
Specifications
Technical parameters
| Model | HN-3015G6 | HN-4015G6 | HN-4020G6 | HN-6025G6 | HN-8025G6 | HN-12025G6 |
|---|---|---|---|---|---|---|
| Working area | 3000×1500 | 4000×1500 | 4000×2000 | 6000×2500 | 8000×2500 | 12000×2500 |
| Laser power | 1000 W – 50000 W (across the range) | |||||
| Max. acceleration | 1.5 G | |||||
| Max. movement velocity | 160 m/min | |||||
| Positioning accuracy | 0.03 mm/m | |||||
| Repeat positioning accuracy | 0.02 mm/m | |||||
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
