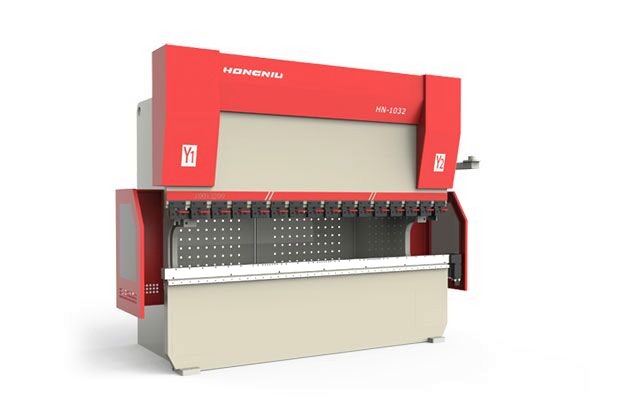

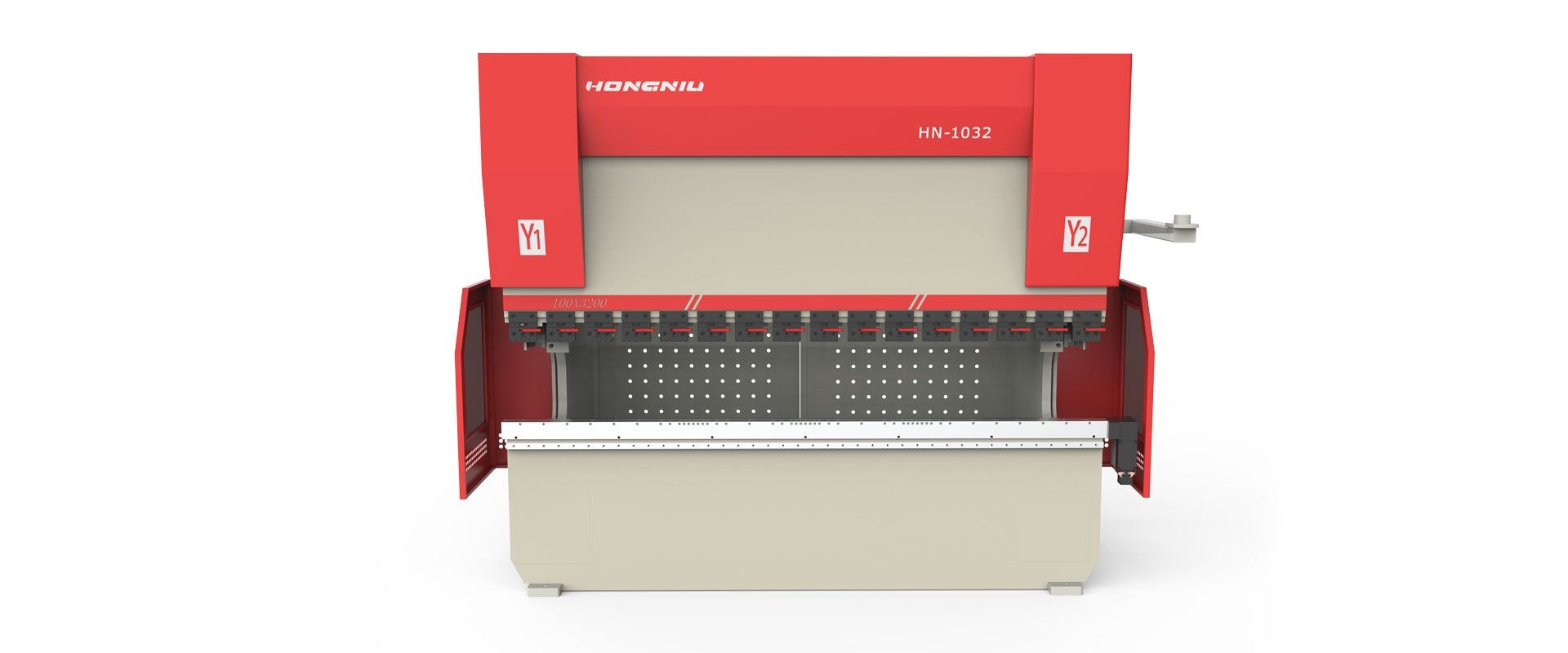

CNC Press Brake
2200 kN · 4+1 axis · ±0.01 mm ram
An independently developed CNC press brake built on a high-quality welded steel structure for durability and stable, long-term performance. A user-friendly touch interface auto-calculates bend data and applies deflection compensation for accurate results in mass production. Complies with EN ISO 12100 and bends stainless, carbon steel, galvanised, aluminium-zinc, copper and aluminium.
- Complete touch-control solution
- Automatic bend calculation & deflection compensation
- Rigid welded frame for long service life
- Complies with EN ISO 12100 safety standard
- 2-year limited warranty
Engineering
Why it earns its floor space
Touch-Control Solution
A complete touch-screen control system makes accurate, safe sheet bending straightforward for the operator.
Auto Deflection Compensation
The control auto-calculates bending data and applies deflection compensation for accurate, repeatable results in mass production.
Rigid Welded Frame
A high-quality steel welded structure with anti-rust primer and top coat guarantees long-term stable performance.
EN ISO 12100 Safety
Designed to the EN ISO 12100 machine-safety standard — the key reference for press-brake design.
Multi-Material
Bends stainless, carbon steel, galvanised, aluminium-zinc sheet, copper and aluminium.
Specifications
Technical parameters
| Parameter | HN2232-5 (4+1 axis) |
|---|---|
| Bending force | 2200 kN |
| Usable length | 3200 mm |
| Distance between housings | 2700 mm |
| Max. open height | 495 mm |
| Throat depth | 400 mm |
| Ram (Y1/Y2) accuracy | ±0.01 mm |
| Backgauge accuracy | ±0.025 mm |
| Main motor power | 15 kW (servo, double-pump) |
| Dimensions | 3350 × 1600 × 2620 mm |
| Approx. weight | 13000 kg |
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
