Sheet Metal Cutting

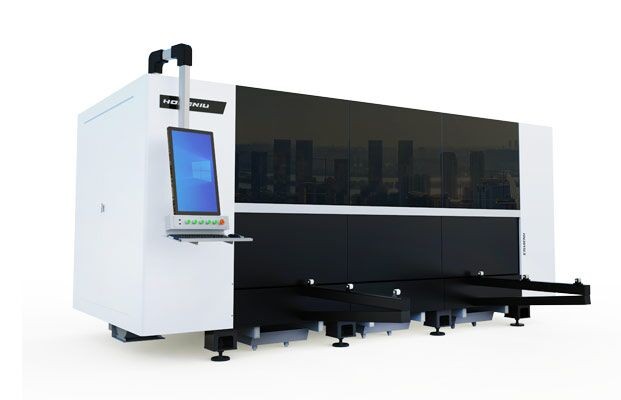

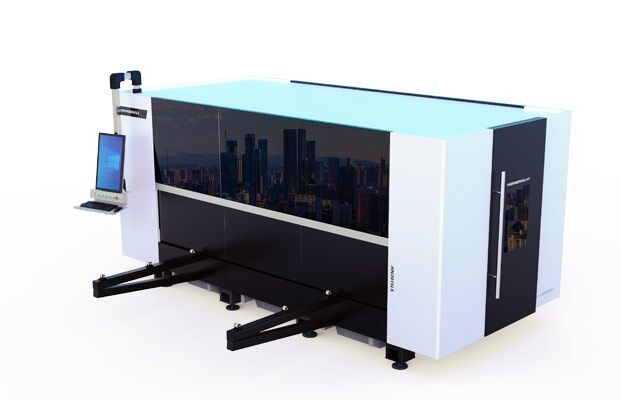

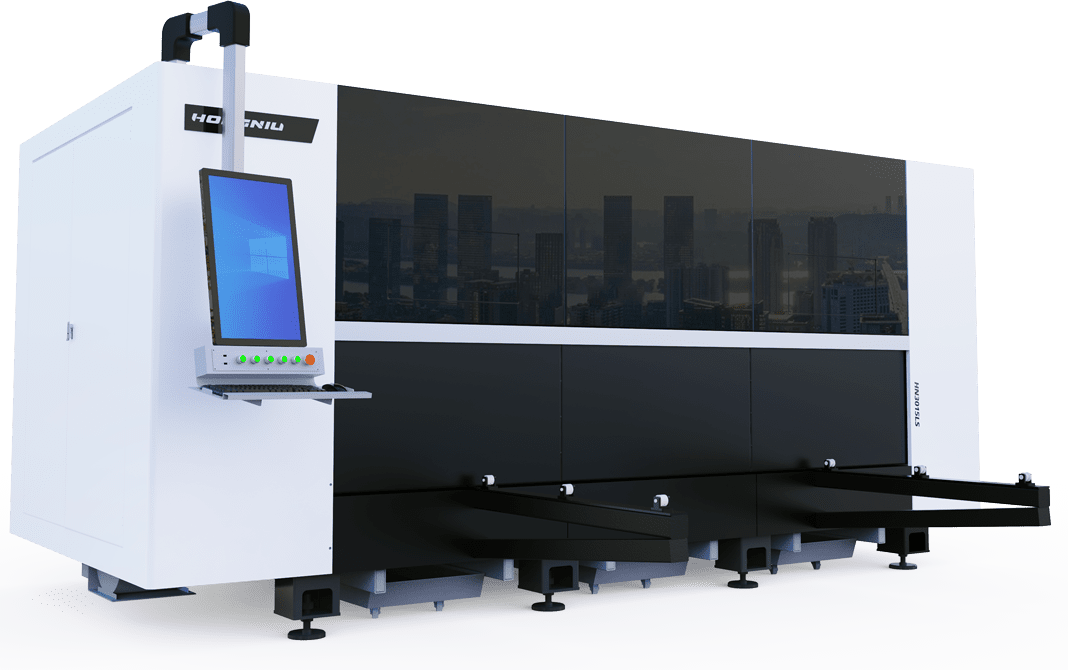

Full-Cover Single-Table Cutter
1–6 kW · fully enclosed · smallest footprint
The single-table enclosed cutter delivers efficient, precise cutting across sheet metals from 1 kW to 6 kW while occupying less than half the footprint of a twin-pallet machine. Its CE/FDA-approved enclosure keeps the process pollution-free, and the integrated design ships ready-to-run in a 20-ft container.
- Single working table, fully enclosed structure
- Power options from 1 kW to 6 kW
- Saves over 50% floor space vs. dual-table machines
- Ships in a 20-ft container, ready to run after power-up
- CE / FDA / ETL certified — 2-year limited warranty
Engineering
Why it earns its floor space
Completely Enclosed Structure
A robust full enclosure eliminates laser radiation exposure and keeps the cut compliant with local environmental and safety regulations.
Pull-Out Workbench
A hand-operated (or electric) pull-out table makes loading and unloading fast and convenient for conventional sheet-metal work.
Partitioned Smoke Exhaust
Zoned blow-and-suction extraction targets the active cutting area, sharply improving fume capture efficiency.
Single-Platform Footprint
A space-saving single-platform layout meets conventional plate-cutting needs while occupying far less floor area.
Lower Freight & Install Cost
An integrated design needs no disassembly for delivery and fits a 20-ft container — ready to use after power-up.
Specifications
Technical parameters
| Parameter | 3015LS |
|---|---|
| Working area | 3000×1500 mm |
| Laser power | 1000 W – 6000 W |
| Max. movement velocity | 80 m/min |
| Repeat positioning accuracy | 0.02 mm/m |
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
