Sheet Metal Cutting

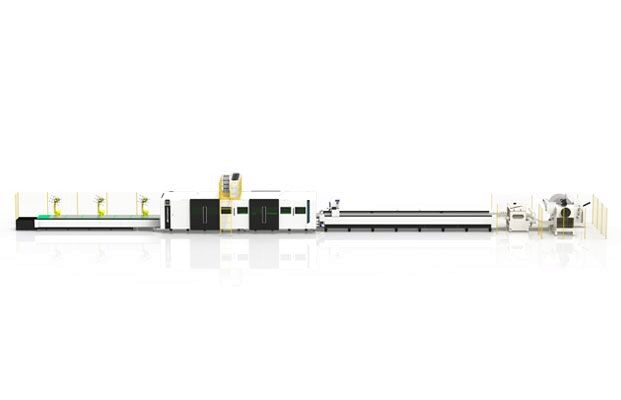

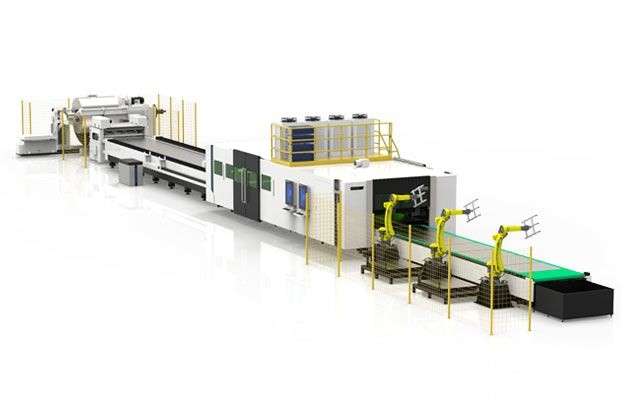

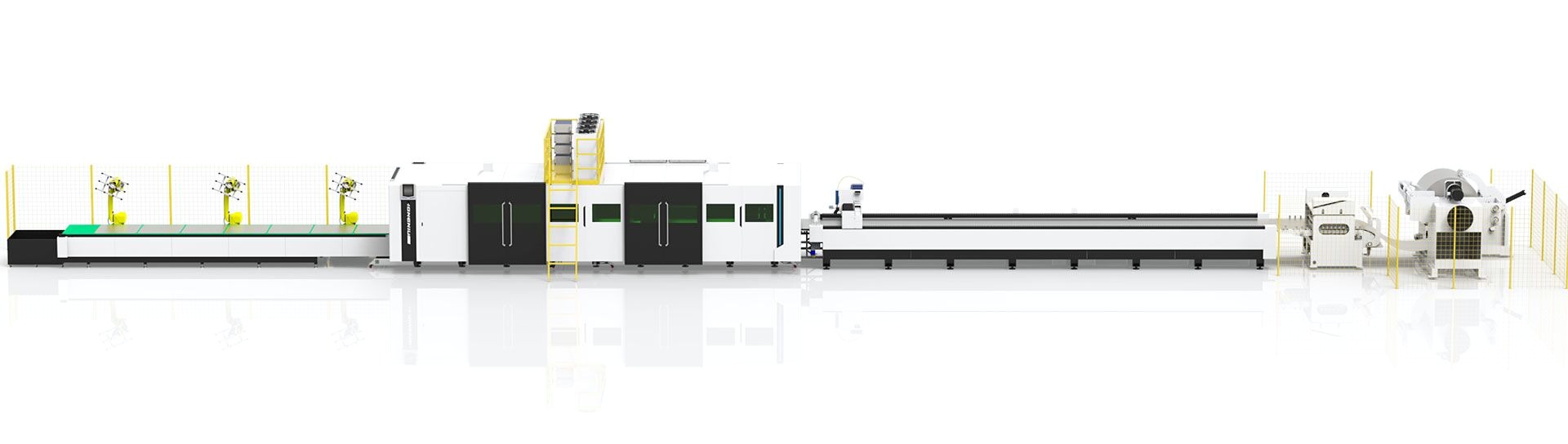

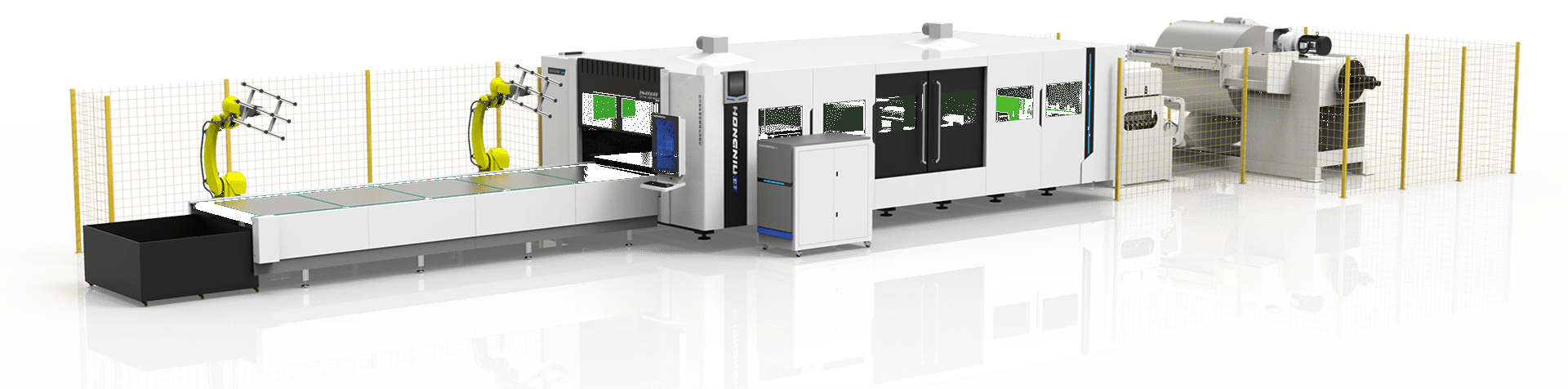

Coil-Fed Laser Blanking Line
automatic blanking · ±0.01 mm leveling · multi-head
This fully automatic line combines a metal coil-feed system with fiber laser cutting for continuous coil-fed blanking. The automated design saves labour, achieves net cutting and improves material utilisation. A high-load frame, hydraulic uncoiler and precision leveler deliver stable operation and flexible cutting of stainless, carbon and galvanised coil — ideal for agriculture, appliance, food and engineering-machinery production.
- Coil straightening and net blanking
- Hydraulic uncoiler — 5–15 T single coil
- Material 0.5–3 mm stainless / carbon / galvanised
- Leveling-feeder correction accuracy ±0.01 mm
- CE / FDA certified
Engineering
Why it earns its floor space
Practical & Efficient
A coil-fed line raises efficiency and lowers cost per part while holding quality, improving competitiveness.
High Precision
High-precision servo drive, reliable laser control and a programmable system ensure accurate feeding and cutting with ±0.01 mm leveling correction.
High Stability
Rotatable blades synchronise material conveying with bed rotation; double-sided chain transmission spreads load for stable, accurate cutting.

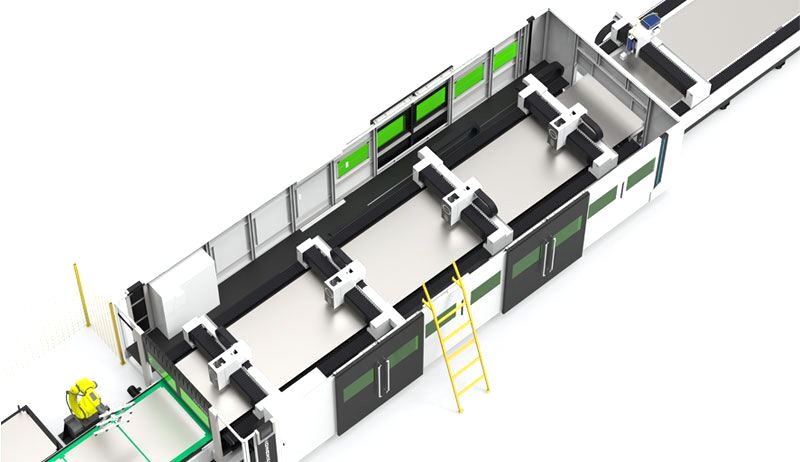

Multi-Head Processing
Optional multi-head cutting and welding with automatic splitting, asynchronous processing, real-time beam control and anti-collision.

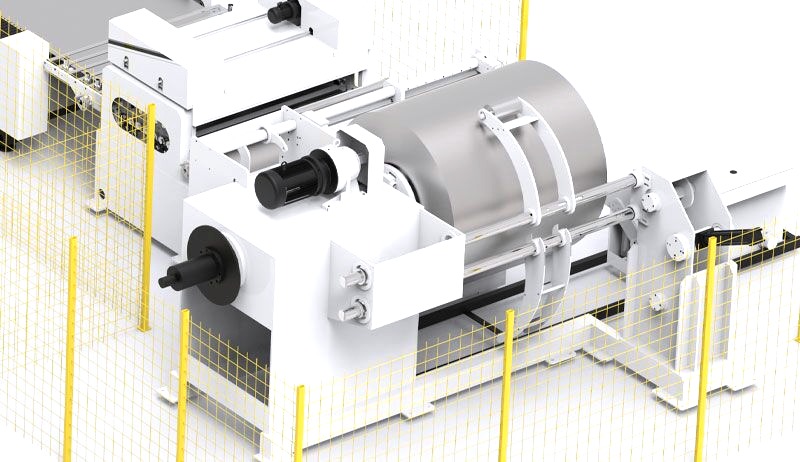

Hydraulic Uncoiler & Leveler
A 5–15 T hydraulic uncoiler with a stress-relieving leveler flattens material for a better, more consistent cut.
