Tube & Profile Cutting

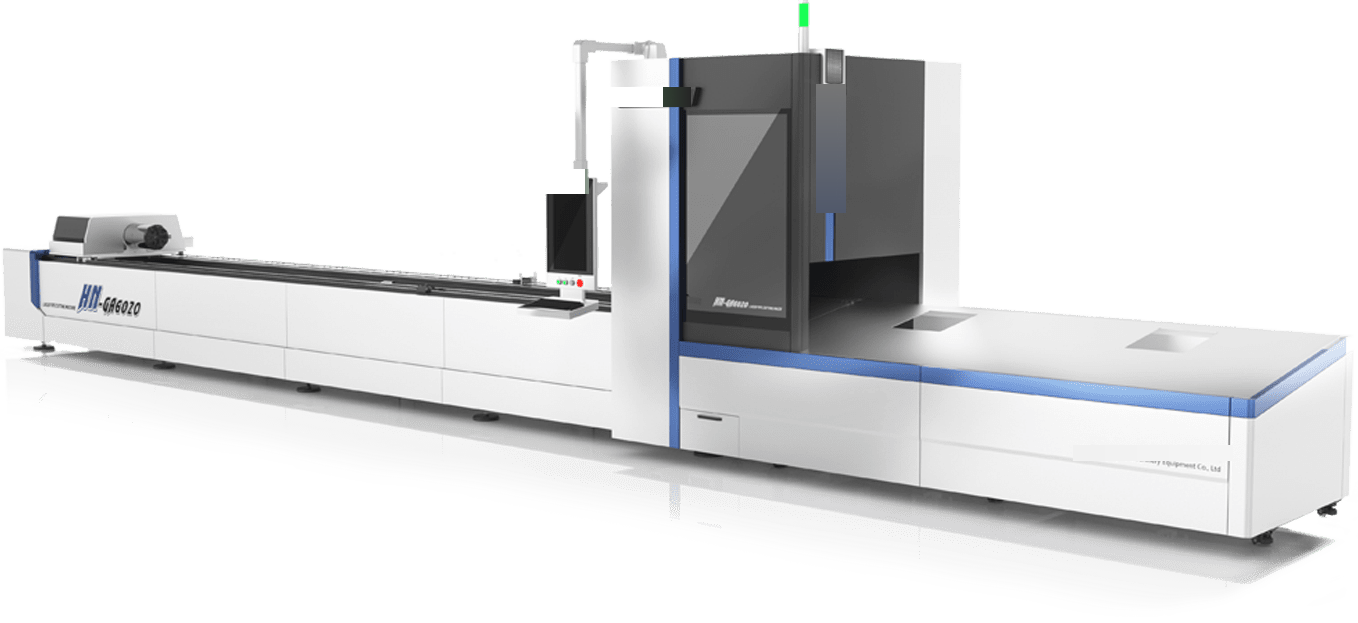

Professional Tube Cutter
1–6 kW · all-round · auto load / unload
This all-round tube cutter runs 1 kW to 6 kW and processes pipe up to 6000 mm: round tube Ø20–220 mm and square tube 20×20–150×150 mm. With automatic load/unload it cuts racetrack and oval stretched tube, angle steel, channel steel, I-beam and other special-shaped sections with precision.
- Automatic loading and unloading
- Round tube Ø20–220 mm, square 20×20–150×150 mm
- Tube length up to 6000 mm
- Cuts angle, channel, I-beam and special shapes
- CE / FDA certified — 2-year limited warranty
Engineering
Why it earns its floor space
Professional Tube System
A simple, responsive, visualised interface cuts square, round and elliptical tube and batch-cuts small tubes intelligently.
Specialised Tube Head
A slender-nozzle tube head cuts H-beam, P-beam, I-beam and special shapes interference-free, with a follow-up support system for long tubes.

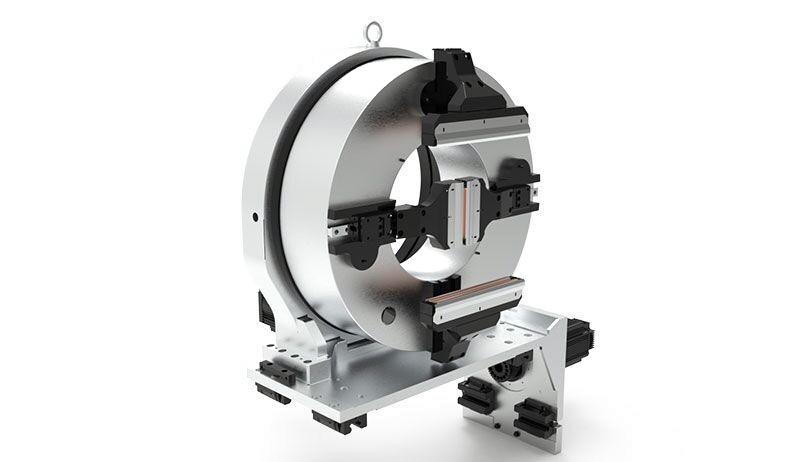

Intelligent Pneumatic Chuck
A self-centring pneumatic chuck with intelligent jaws clamps in as little as 3 seconds with high repeat precision and large clamping force.

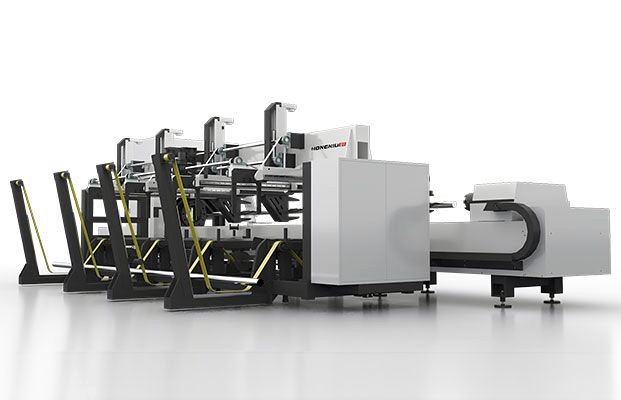

Automatic Load / Unload
A 6 m tube-bundle auto load/unload system with intelligent sorting cuts labour for batch production.
Special-Shaped Steel
Handles round, square and rectangular tube plus angle, channel and H-shaped steel.
Specifications
Technical parameters

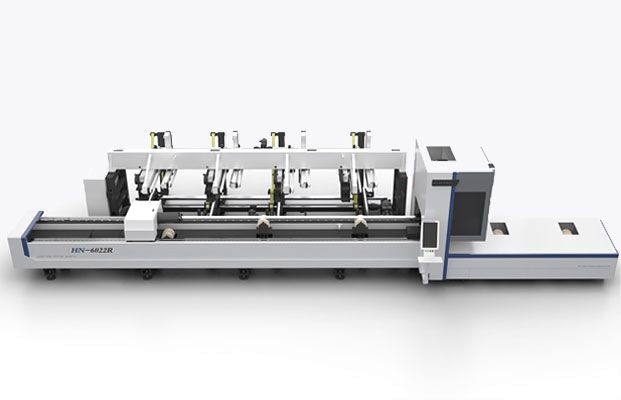

| Model | 6016RA | 6022RA |
|---|---|---|
| Pipe processing range | 6000 × Ø10–160 (□10–110) | 6000 × Ø20–220 (□20–155) |
| Laser power | 1000 W – 6000 W | |
| Positioning accuracy | 0.03 mm/m | |
| Repeat positioning accuracy | 0.02 mm/m | |
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
