Tube & Profile Cutting

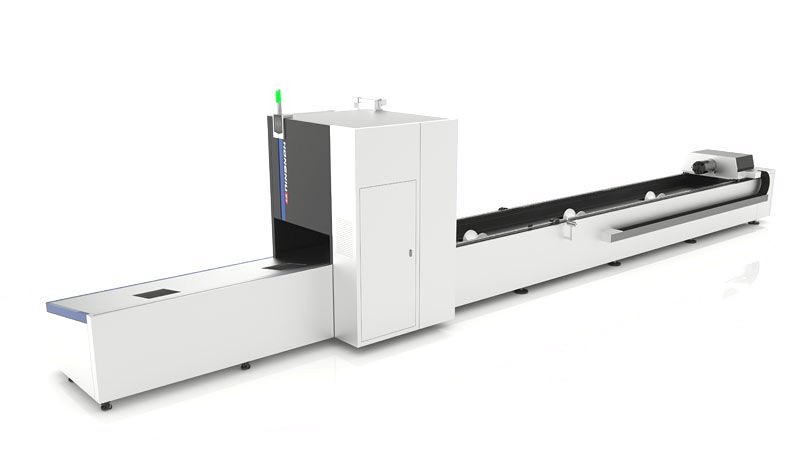

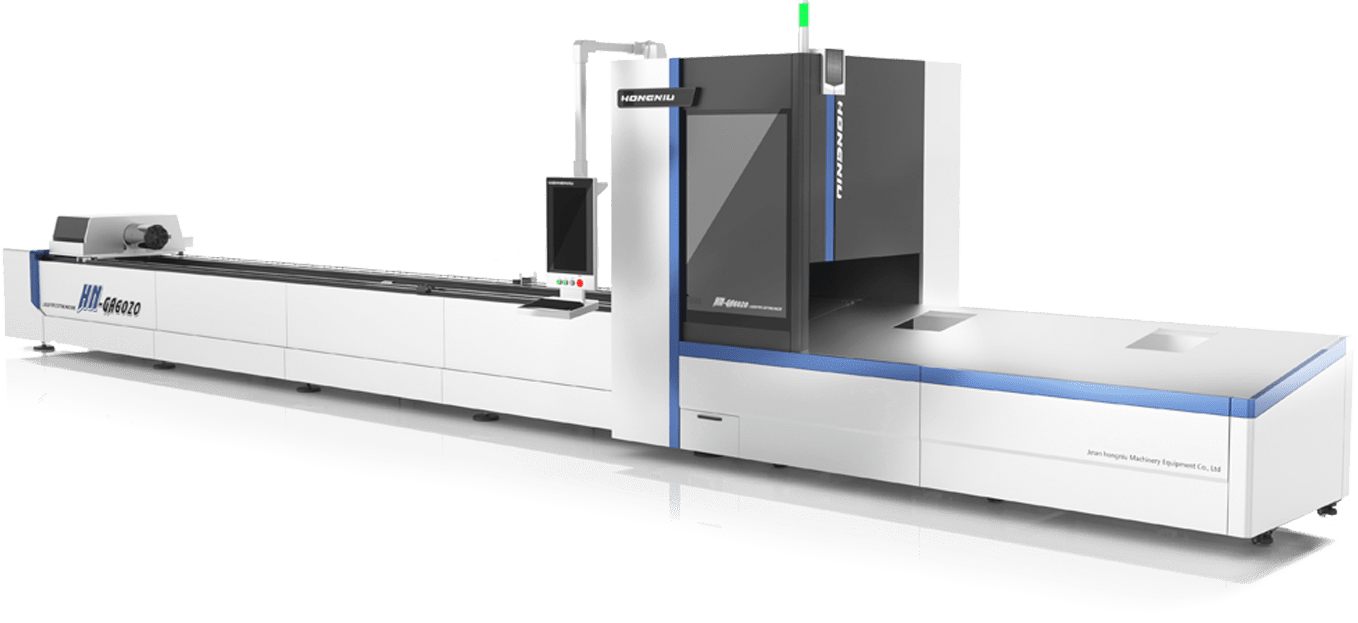

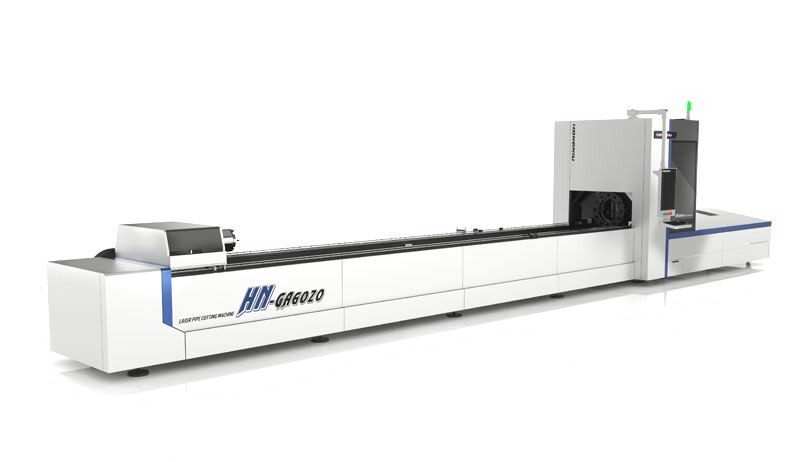

Economical Tube Cutter
1.5–6 kW · ultra-fast · best value
This value-focused tube cutter runs 1.5 kW to 6 kW and handles round and square tube up to 6000 mm. Flying-cut and space-leapfrog motion, plus an optional automatic load/unload device, make it a high-efficiency machine — chuck speed to 125 r/min, running speed to 120 m/min, and positioning accuracy of ±0.05 mm.
- Optional automatic loading and unloading
- Round tube Ø20–220 mm, square 20×20–150×150 mm
- Tube length up to 6000 mm
- Chuck speed 125 r/min, cutting speed 120 m/min
- CE / FDA certified — 2-year limited warranty
Engineering
Why it earns its floor space
Professional Tube System
A simple, responsive interface with visualised processing cuts square, round and elliptical tube with ease.
Specialised Tube Head
A slender-nozzle head cuts H-beam, P-beam, I-beam and special shapes interference-free, with follow-up support for long tube.
Ultra-Fast, High Accuracy
Chuck speed to 125 r/min and running speed to 120 m/min, with ±0.05 mm positioning and ±0.02 mm repeatability.

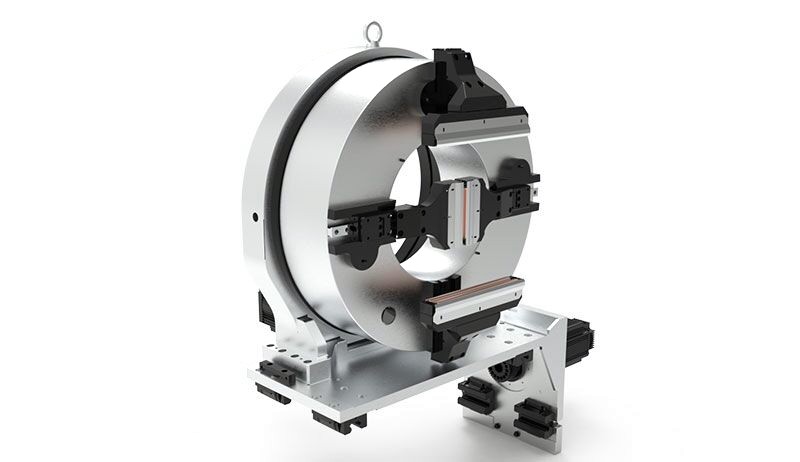

Intelligent Pneumatic Chuck
A self-centring pneumatic chuck clamps in as little as 3 seconds with high repeat precision and stable feeding.
Optional Auto Load / Unload
An optional 6 m tube-bundle auto load/unload system with intelligent sorting scales the machine to batch production.
Specifications
Technical parameters
| Model | 6016RQ | 6022RQ | 6022R | 6035R |
|---|---|---|---|---|
| Pipe processing range | 6000 × Ø10–160 (□10–110) | 6000 × Ø20–220 (□20–155) | 6000 × Ø20–220 (□20–250) | 6000 × Ø20–350 |
| Laser power | 1000 W – 3000 W | — | 1000 W – 12000 W | — |
| Positioning accuracy | 0.03 mm/m | |||
| Repeat positioning accuracy | 0.02 mm/m | |||
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
