The machine
Engineered for the heaviest tube.
From 1 kW to 12 kW on a side-attached bed built for stability and shock resistance — round tube to Ø600 mm, single lengths to 12 m and up to 1500 kg.
Tube & Profile Cutting

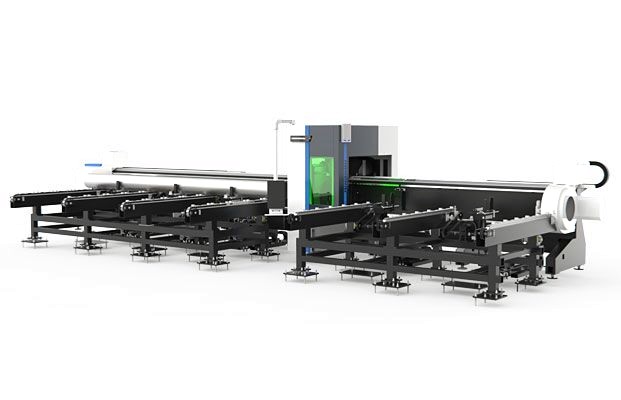

Heavy-Duty Three-Chuck Tube Cutter
1–12 kW · round tube to Ø600 · zero tailings
Designed for ultra-heavy tube and profile, this three-chuck cutter runs 1 kW to 12 kW on a side-attached bed built for stability and shock resistance. Reverse three-chuck cutting achieves zero tailings, double stations and a servo support keep accuracy high, and automatic load/unload cuts labour. It handles round tube to Ø600 mm, single lengths to 12 m and weights to 1500 kg.
- Automatic loading and unloading
- Cuts round tube up to Ø600 mm
- 45° bevel cutting (optional)
- Tube length up to 12000 mm, weight to 1500 kg
- CE / FDA certified
1–12 kW
Laser power
to Ø600 mm
Round tube
to 12 m
Tube length
to 1500 kg
Load capacity
Closer look
A closer look at the machine, part by part.
Heavy-Duty Three-Chuck Tube Cutter
Structure

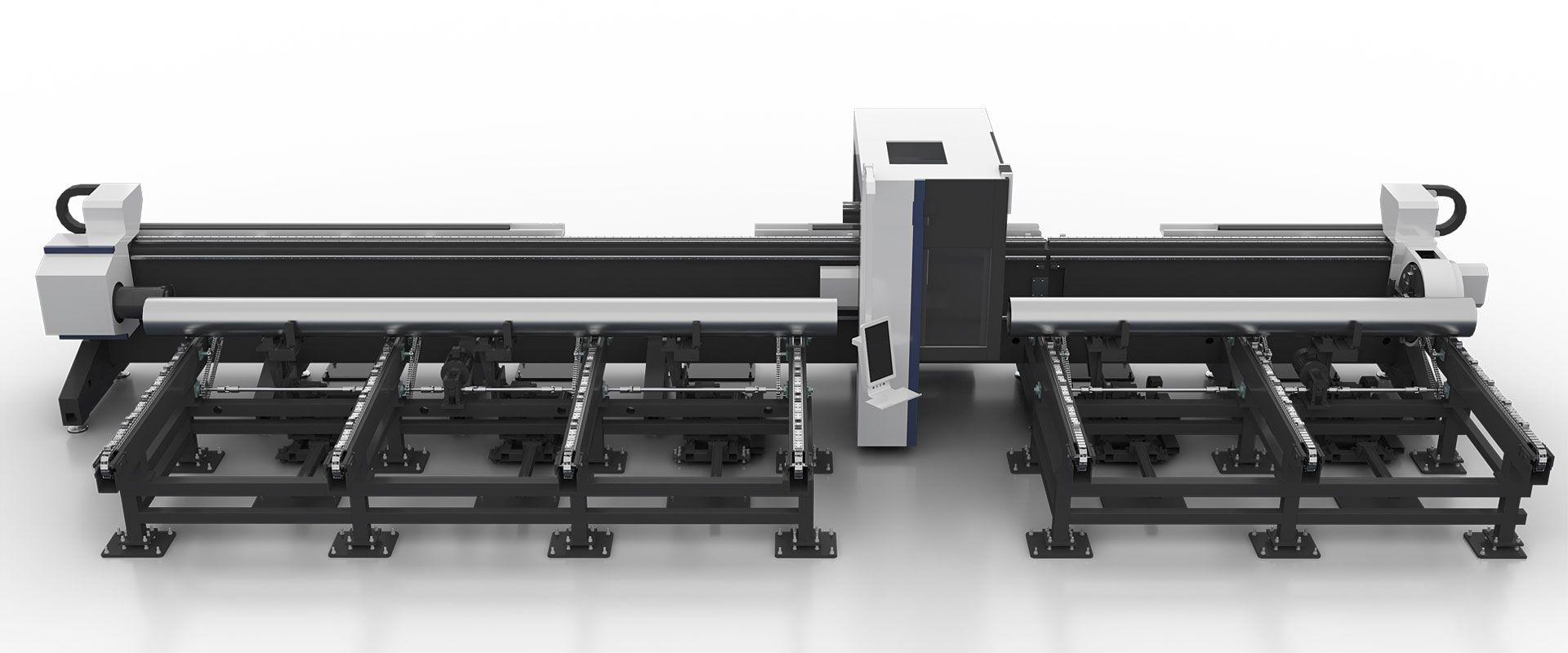

A bed that doesn't flinch.
The side-attached machine bed gives larger loading capacity and higher cutting accuracy, with convenient loading and unloading on both sides.
Cutting head

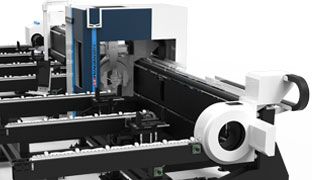

Specialised tube cutting head.
A slender-nozzle head cuts round, square and structural sections — H-beam, channel and angle — interference-free, with a follow-up support system for long tube.
Three-chuck system

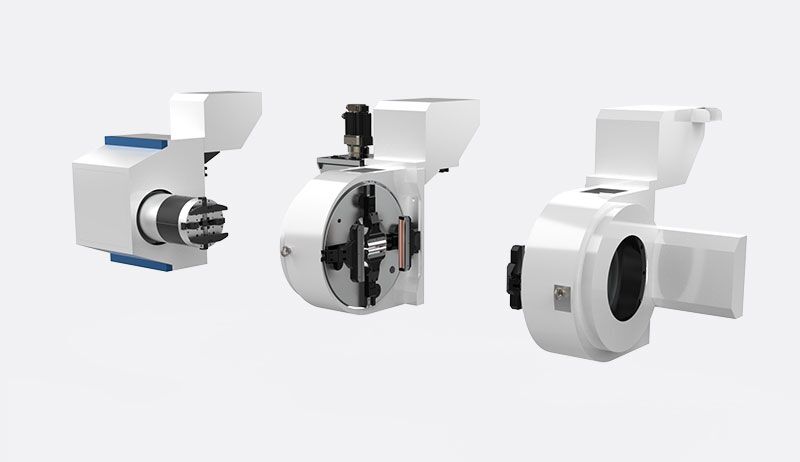

Three chucks. Zero tailings.
Reverse cutting across a three-chuck, double-station layout drives tailings to zero and pushes material utilisation higher — full-stroke clamping holds the tube dead-true.
Automation

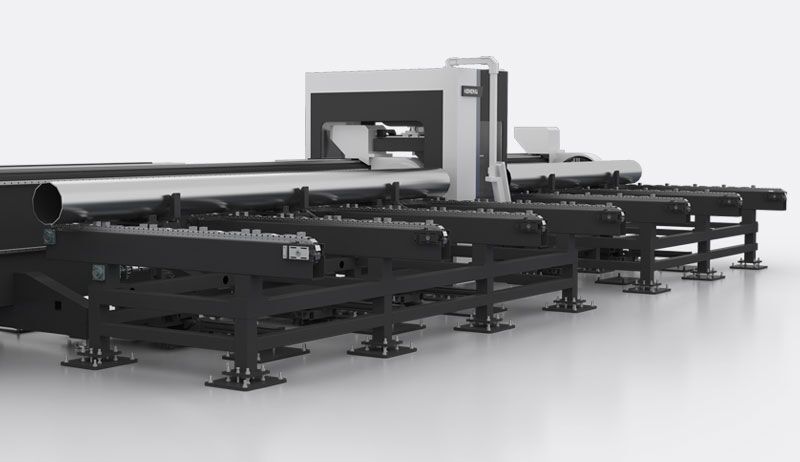

Loads and unloads itself.
An automatic loading and unloading platform with intelligent sorting feeds 6 m bundles for batch production — saving labour and lifting throughput.
Engineering
Why it earns its floor space
01
Three-Chuck, Zero Tailings
A three-chuck structure with double cutting stations cuts in reverse for zero tailings and high material utilisation.
02
Side-Attached Bed
The side-attached machine bed delivers stability, larger loading capacity and higher cutting accuracy, with convenient loading/unloading.
03
45° Bevel Head (Optional)
A dedicated ±45° bevel head with auto-focus cuts round, square, angle and channel steel.
04
Automatic Load / Unload
Automatic loading and unloading with intelligent sorting saves labour and lifts efficiency for batch production.
05

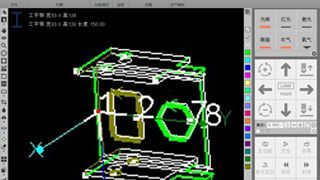

Professional Tube System
A simple, responsive interface with visualised processing cuts square, round and elliptical tube and batch-cuts small tubes intelligently.
Specifications
Technical parameters
| Parameter | 6035TS |
|---|---|
| Pipe processing range | 6000 × Ø20–350 mm (square 20×20–250×250) |
| Laser power | 1000 W – 12000 W |
| Positioning accuracy | 0.03 mm/m |
| Repeat positioning accuracy | 0.02 mm/m |
| Bevel cutting | Optional |
Standard configuration
- BT110 laser cutting head
- Raycus fiber laser source
- Welded steel machine bed
- Aviation-aluminium beam
- Cypcut 8000S control
Optional
- Step-up transformer
- Air compressor
- Cooling air conditioner / chiller
- Smoke exhaust fan
Specifications are indicative and may change with configuration and power level. Confirm final specs on quotation.
